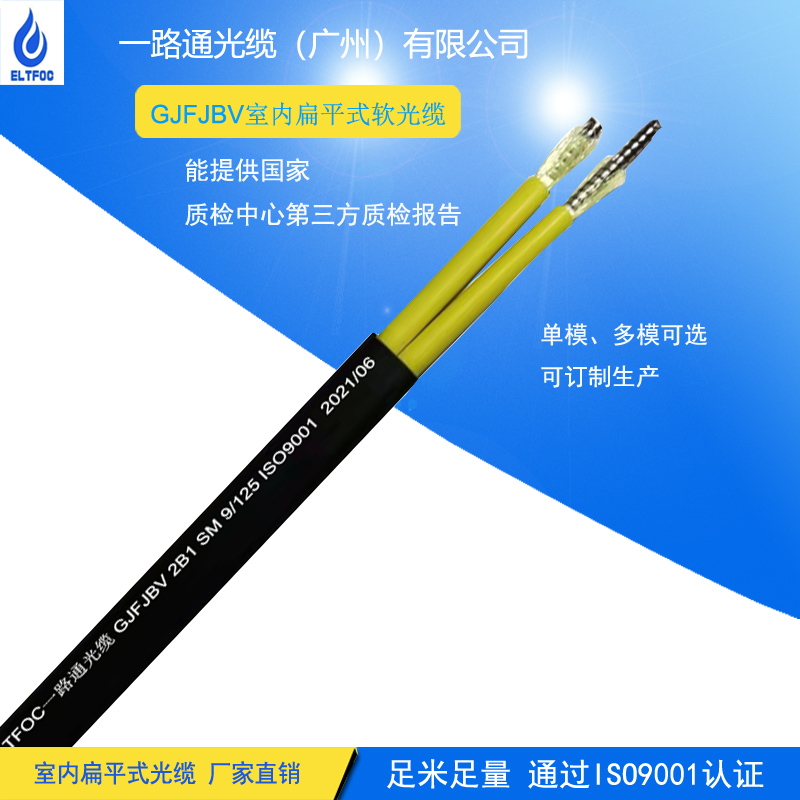

| ELTFOC-GJFJBV-双芯扁平室内光缆 ELTFOC- GJFJBV-Flat twin duplex minitary tactical indoor cable |
||||||||||
 |
||||||||||
| 应 用Application： | 特 点Characteristics： | |||||||||
| ☆.适合室内布线 Adopted to indoor distribution. |

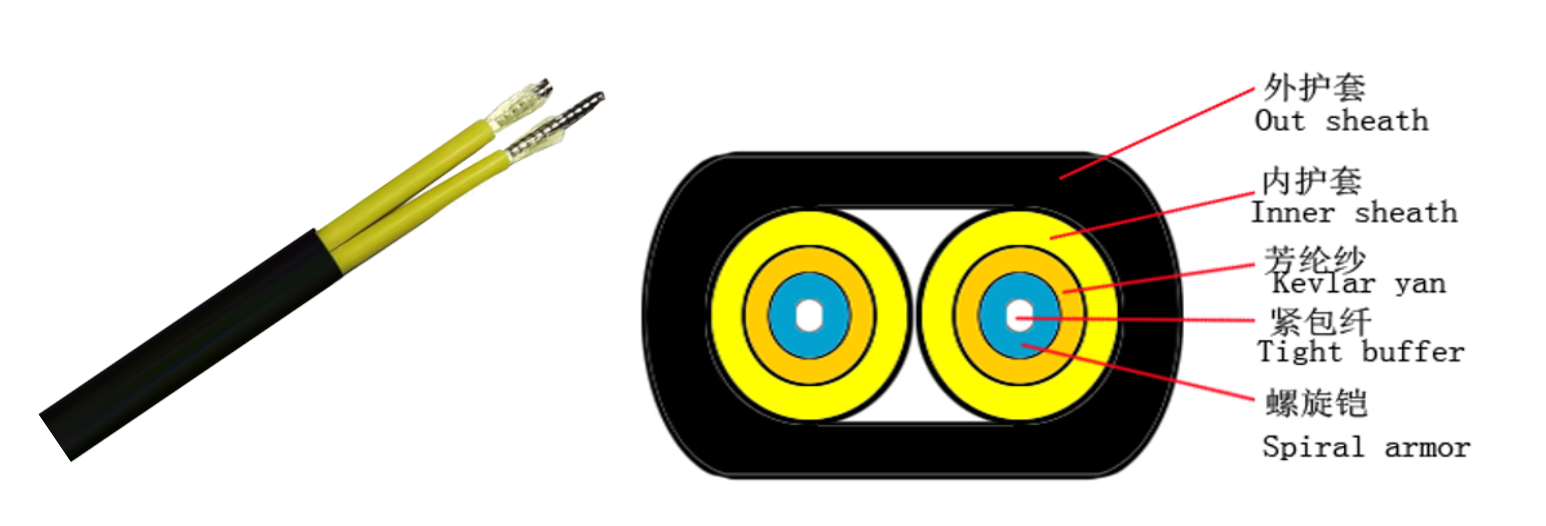

☆.高强度芳纶,双层护套保护 High-strength aramid, double jacket to protect. |
|||||||||
| ☆.适合组装尾纤、跳线 As pigtail of communiction equipment. |
☆.具有较好的环境和机械性能 With a better environment and the mechanical properties. |
|||||||||
| ☆.适合通信设备、光仪器的光连接 Suitable for communication equipment served . |
☆.柔软、易剥离、接续方便 Soft, easy to peel, to facilitate follow |
|||||||||
| ☆.适合密集使用、维护方便 Can be installed conveniently and perated simply. |
☆ .防咬防压 Anti-bite anti-pressure. |
|||||||||
| 技术参数Technical parameters: | ||||||||||
| 外护套外径 out sheath diameter |
内护套外径 inner sheath diameter |
光缆重量 Weight |
允许拉伸力 Minimum allowable Tensile strength(N) |
压扁力 Minimum allowable Crush load （N/100mm) |
弯曲半径 Min bending radius (MM) |
适用温度 Suitable temperature |
||||
| （MM) | （MM) | （KG) | 短期 short term |
长期 long term |
短期 short term |
长期 long term |
短期 short term |
长期 long term |
（℃） | |
| 3.0×5.0 | 1.8 | 56 | 800 | 300 | 1000 | 500 | 20D | 10D | -20+60 | |
| 3.2×5.6 | 2.0 | 68 | 800 | 300 | 1000 | 500 | 20D | 10D | -20+60 | |
| 5.0×8.0 | 2.8 | 87 | 800 | 300 | 1000 | 500 | 20D | 10D | -20+60 | |
| 6.8×4.1 | 3.0 | 90 | 800 | 300 | 1000 | 500 | 20D | 10D | -20+60 | |
| 光纤标准对照Fiber standard control | ||||||||||
| 光纤类型 Fiber Type |
多模Multi-mode | G.651 | A1a:50/125 | 渐变型折射率Gradient-type refractive index | ||||||
| A1b:50/126 | ||||||||||
| 单模Single-mode | G.652(A、B、C、D） | B1.1常规routines | ||||||||
| G.653 | B2 零色散位移Zero dispersion-shifted | |||||||||
| G.654 | B1.2 截止波长位移Cutoff wavelength shift | |||||||||
| G.655 | B4 非零色散位移Non-zero dispersion-shifted | |||||||||
